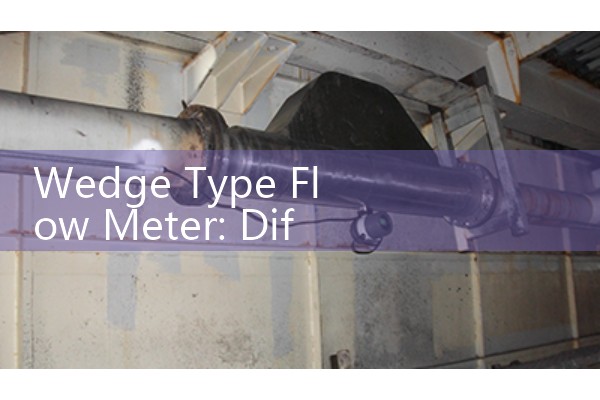

Wedge Type Flow Meter: Differential Pressure Elements for Abrasive Mediums
Quick Answer: A wedge flow meter generates a reliable DP signal with a V-shaped restriction that stays clean. This meter handles abrasive slurries, fluids with high solids, and sticky pastes without the clogging of an orifice plate. In mining, wastewater, and chemical plants, the wedge element often lasts five to eight years longer than other primary elements.
Why Standard Orifice Plates Fail in Abrasive Service
Most process engineers learn early that a sharp-edged orifice plate wears fast when sand, mill scale, or catalyst fines hit the surface. The edge rounds off within months. Flow readings drift upward. A maintenance team then shuts down the line, isolates the run, and swaps the plate. We have seen this pattern repeat at a copper concentrator in Chile and at a titanium dioxide plant in Southeast Asia. When the fluid carries more than 5 percent solids, the orifice plate becomes a disposable part. So the site keeps spare plates on the shelf. Because downtime costs can exceed the meter price tenfold, a better primary element pays itself back quickly.
How the Wedge Element Works with Dirty Fluids
A wedge meter uses a restriction that is open at the bottom. The V-shaped wedge is welded or clamped into the pipe body. Solids, fibers, and grit pass through the bottom gap freely. There is no sharp edge facing the flow stream. The wedge shape creates a high-pressure zone upstream and a low-pressure zone downstream. Pressure taps, located on top of the meter body or at the side, transmit the DP to a transmitter. This principle has been field-proven for over 40 years. In practice, the wedge is self-cleaning. A paint maker in Vietnam switched from a magnetic flow meter to a wedge meter because the PTFE liner of the magmeter peeled off after six months of abrasive pigment slurry. The wedge meter with a PTFE-coated body and 316L wedge solved the problem permanently.
Material Choices That Extend Meter Life in Abrasive Media
Material selection determines the total cost of ownership for a wedge flow meter. For water-based mining slurries with silica sand, a 316L stainless steel wedge with Stellite 6 hard-facing on the tip is the economical choice. Aggressive media demand Hastelloy C-276, duplex 2205, or Super Duplex wedges with corrosion-resistant liners. Our engineering team specified a Hastelloy C-276 wedge element for a phosphoric acid slurry at a fertilizer plant in Morocco. The pipe body was lined with PTFE, and the remote diaphragm seal used a tantalum membrane. Operating temperature was 90 degrees Celsius, pressure 12 bar, line size DN65. The plant engineer confirmed no zero-shift on the 4-20 mA HART signal over three years of continuous service. In another case, a wastewater plant in Saudi Arabia uses a wedge meter with a ceramic-coated wedge for lime sludge at pH 12. Both installations run with no spare parts inventory for the primary element.
Pipe Sizes and Process Connections
Wedge flow meters are available from DN15 to DN1200 and even larger on request. The most common sizes for abrasive slurry duty fall between DN25 and DN300. Flange connections follow ASME B16.5 or EN 1092-1 standards. Because many abrasive applications run at moderate pressure, wafer-style bodies with raised-face flanges are standard. For high-pressure CO2 injection with sand fines, we supply RTJ flanges and rating up to Class 2500. A coal bed methane operator in Queensland, Australia installed a DN80 wedge meter with RTJ flange and a 26 bar rating. The remote-seal transmitter sits on a 3-valve manifold. In a Latin American gold mine, a DN150 wedge meter handles tailings slurry with 35 percent solids by weight at 18 bar. The wedge element uses tungsten carbide coating. Straight pipe requirements are generous: 10D upstream and 5D downstream are enough, even with a partially open valve.
_600x400.jpg)
3>Transmitter Matching and Output Signals
Any DP transmitter works with a wedge primary element. Most projects use a 4-20 mA HART or Modbus RTU output. Silver Instruments provides complete assemblies with a DP transmitter factory-mounted on a 5-valve manifold and impulse tubing. Each assembly goes through a hydrostatic test at 1.5 times the design pressure. A five-point calibration certificate is included, traceable to international standards. For ATEX Zone 1 or IECEx environments, we combine the wedge element with an intrinsically safe or flameproof transmitter. The loop includes a galvanic isolator or Zener barrier. In a chemical plant in Malaysia, the wedge meter signal goes into a Rockwell PLC via HART, and the operations team sees live m3/h on the SCADA screen with plus minus 0.5 percent uncertainty after field calibration. For remote locations, Silver Instruments can supply a battery-powered wireless DP transmitter with LoRa or 4G, so you skip cable trenching and junction boxes.
Silver Automation Instruments Wedge Meter Supply Scope
Silver Instruments is a flow meter manufacturer based in China that ships directly to users in Australia, Southeast Asia, the Middle East, Africa, and Latin America. We supply wedge type flow elements in forged carbon steel, 316L, Hastelloy, and other alloys. Our standard delivery for a DN50 wedge meter with 316L body and Stellite wedge tip is 3 to 4 weeks. Larger or PTFE-lined units need 6 to 8 weeks. We pack each meter in a fumigated plywood crate with a lay-up flange and desiccant bags. The shipment includes material certificates per EN 10204 3.1, hydrotest report, and welding procedure specification. Most engineers skip the optional coating inspection, but for offshore projects we add an NACE MR0175 compliance certificate. Because we are the manufacturer, you get direct pricing and technical support without distributor margins.
Get a Quote for Your Abrasive Flow Application
Send us your process data: fluid type, abrasive content (percent solids or particle description), operating pressure in bar, temperature in degrees Celsius, pipe diameter (DN), flow range (min, normal, max in m3/h), and hazardous area classification if any. You can reach us via Tel: +86-25-68650347, Whatsapp: +86-25-52155837, or WeChat: +86 15365082610. We return a detailed proposal with price, datasheet, and lead time within two working days.
Frequently Asked Questions
1. Can a wedge flow meter measure clean water? Yes, but it is an overinvestment. For clean liquids, a magnetic or vortex meter costs less and works fine. The wedge element justifies its cost only for abrasive or fouling fluids.
2. How often do we recalibrate the wedge flow meter? The primary element geometry does not change under normal wear, so no recalibration is needed. You only check the DP transmitter zero every 12 months, following your plant standard. If the wedge tip shows deep grooving after years, then replacement may be needed, but that is rare with correct material selection.
3. Is the wedge meter approved for food or beverage pastes? Yes. With electro-polished 316L and FDA-compliant EPDM or PTFE seals, the wedge meter can measure chocolate slurry, fruit pulp, or starch paste. We have supplied meters with 3A surface finish for a dairy plant in New Zealand.
4. What accuracy can we expect? With a quality DP transmitter and good installation, the system accuracy is plus minus 0.5 to 1.0 percent of rate. In field conditions without a calibration rig, expect approximately plus minus 2 percent, which is acceptable for most slurry mass-balance work.
5. Can you supply remote diaphragm seals for bitumen or hot wax? Yes, we supply capillary diaphragm seals with high-temperature fill fluids rated up to 300 degrees Celsius. Provide the exact temperature and the pipe diameter, and we will confirm the seal specification and response time.
