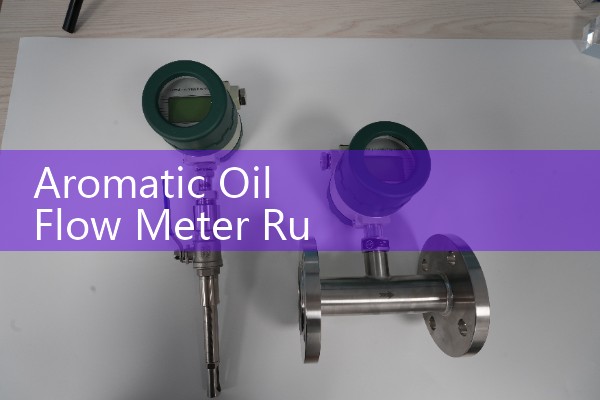

Aromatic Oil Flow Meter Rubber Manufacturing In-Line Sizing
Quick Answer: For in-line metering of aromatic oil in rubber manufacturing, a Coriolis mass flow meter or an oval gear flow meter works best. These meters handle oil viscosity from 30 cP up to 2,500 cP and process temperatures up to 200 °C. Correct sizing comes from your pipe diameter (DN15 to DN80), actual flow rate (kg/h), and oil viscosity at operating temperature. Send us these four numbers and we return a model recommendation and a firm price quote within one business day.
Why Aromatic Oil Flow Measurement Matters
Aromatic oil is a heavy extender oil used in tire treads, rubber hoses, and molded rubber parts. It softens the compound and improves processing. The oil is thick, sticky, and often heated to 100 °C to 160 °C. A small dosing error of only 2 % changes the durometer of the final rubber product. Too much oil can ruin a 2-tonne batch. In practice, we see rubber plants rely on old sight glasses or manual weighing. Those methods introduce human error and slow down the mixing line. An in-line flow meter installed directly in the oil supply pipe solves this problem completely.
In-Line Sizing Step Most Plants Skip
Many engineers ask for a flow meter without first checking the in-line sizing. Here is the thing: a meter that is too large runs at low velocity and loses accuracy. A meter that is too small increases pressure drop and can clog with high-viscosity aromatic oil. The correct sizing window is simple. For Coriolis meters, target a mass flow between 10 % and 100 % of the sensor maximum range. For an oval gear meter, size for 10 % to 80 % of the full scale to protect the mechanical gears. A customer site we visited in July last year a rubber hose plant in Malaysia had a DN40 pipe but only 300 kg/h of aromatic oil. They originally installed a DN50 oval gear meter and complained about an unstable reading. We swapped it to a DN15 meter after calculating the actual specific gravity and viscosity. The reading stabilized within a day.
Viscosity and Temperature Kill Generic Meters
Aromatic oil viscosity changes a lot with temperature. At 50 °C the oil might be 800 cP. At 120 °C it drops to 35 cP. Turbine and vortex flow meters struggle badly in this range. Magnetic flow meters cannot work at all because the oil is non-conductive. Differential pressure meters clog the impulse lines with sticky oil residue in under a week. We have seen clogged impulse lines on three separate sites across Indonesia and Vietnam. Oval gear and Coriolis meters laugh at these conditions. An oval gear meter uses the oil as a lubricant. A Coriolis meter has straight tubes or slightly bent tubes and nothing to clog. It also directly reads mass flow (kg/h), which is exactly what the rubber mixing formula requires.
Coriolis or Oval Gear: How to Decide
Choose a Coriolis mass flow meter when you need accuracy better than 0.2 % and the oil temperature is above 120 °C. It also outputs density and temperature, helpful for quality records. A rubber compounder in Turkey uses this density signal to detect wrong oil batches automatically. Choose an oval gear flow meter when the budget is tighter and the oil runs below 120 °C. Oval gear meters with PTFE gears and stainless steel bodies handle aromatic oil nicely. Expect accuracy around 0.5 % of reading. Both meter types can carry ATEX zone 1 or zone 2 approvals if your mixing room has solvent vapors. We ship with 4-20 mA HART output or
Real Application Detail from a Tire Factory
Last month we supplied two Coriolis meters to a retread tire factory in South Africa. Aromatic oil line DN25, flow range 0 to 600 kg/h, oil temperature 135 °C constant. The oil has a density of 0.96 g/cm³. The meters were installed vertically with flow upward to ensure complete pipe filling even at low flow. We included a PT100 temperature sensor integrated into the transmitter so the oil temperature appears on the DCS screen without extra wiring. The plant engineer told us the oil consumption per batch is now recorded automatically, and the monthly oil inventory variance dropped from 4 % to 0.5 %. That paid back the meter cost in under five months.
Common Installation Pitfalls for In-Line Meters
Most engineers skip two things when mounting an in-line flow meter for aromatic oil. First, they ignore the need for straight pipe runs. Coriolis meters usually do not need long runs, but oval gear meters need a strainer mesh of 0.3 mm upstream. Second, they forget that aromatic oil shrinks as it cools after a batch stop. A vertical installation with upward flow prevents air pockets. A drain valve immediately downstream helps when you need to flush the line with hot cleaning oil. Do not install the meter at the lowest point where sediment collects. We learned this the hard way during a site visit to a rubber seal manufacturer near Bangkok. The meter kept fouling until we raised it 40 cm and added a sediment trap below. Problem solved.
Frequently Asked Questions About Aromatic Oil Flow Meters
Can I use an electromagnetic flow meter for aromatic oil? No. Aromatic oil is non-conductive. Magmeters require a minimum conductivity of 5 µS/cm. This oil is far below that threshold.
What output signal do I need for a rubber mixing PLC? Most rubber factories use 4-20 mA HART or an active pulse output. The pulse signal gives totalized volume or mass. HART lets you read density and temperature as secondary variables. Silver Automation Instruments configures the output before shipment at no extra charge.
How do I handle air bubbles in the oil line? Install an air eliminator or a small vessel upstream. Coriolis meters can cope with small bubbles, but oval gear meters over-register flow and wear faster. A simple Y-type strainer with an air vent on top often does the job.
Do you have ATEX certification for aromatic oil meters? Yes. Our oval gear and Coriolis flow meters come with ATEX Zone 1 or Zone 2, Ex ia or Ex d, for gas groups IIB and IIC. The temperature class is typically T3 or T4 depending on the oil temperature. Specify your zone and gas group when you send your inquiry.
What is a typical delivery time for an in-line oil flow meter? For standard DN15 to DN50 meters, we ship within 2 weeks. Meter bodies with special PTFE linings or full Hastelloy wetted parts need 4 to 6 weeks. We dispatch from our factory and can air-freight to any country in Southeast Asia, Oceania, Africa, or the Middle East.
Get a specific quote. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. We reply with a model, data sheet, and price within one working day. Our engineers also check your pipe velocity and recommend the meter size. Reach us at the Silver Automation Instruments website or directly via the contact page on flow-meter.com.au.
