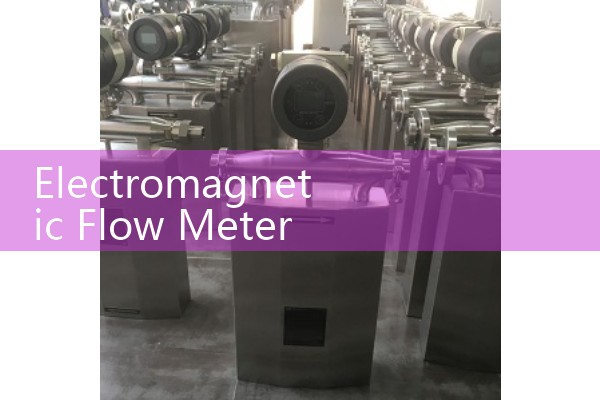

Electromagnetic Flow Meter Working Theory: How Industrial Flow Monitors Measure Velocity
Quick Answer: An electromagnetic flow meter uses Faraday law of induction to measure fluid velocity. A conductive liquid moving through a magnetic field generates a small voltage. That voltage is directly proportional to velocity and the transmitter converts it into flow rate.
An electromagnetic flow meter measures velocity without moving parts or flow obstruction. The flow tube has field coils, a non-conductive liner, and two electrodes. The coils create a magnetic field across the pipe. When a conductive liquid moves through this field, it acts like a moving conductor. The electrodes detect the generated voltage and the transmitter calculates velocity. Because the voltage is linear, the flow rate output is also linear. This is the core of electromagnetic flow meter working theory.
Silver Automation Instruments supplies these meters for pipe sizes from DN15 to DN2000. We often recommend them for water, wastewater, slurries, acids, alkalis, and food liquids. If the liquid has a minimum conductivity of 5 µS/cm, the measurement is stable and repeatable.
Faraday Law and the Basic Formula
The working principle follows the equation E equals B times v times D. E is the induced voltage, B is the magnetic flux density, v is the average flow velocity, and D is the internal pipe diameter. This is a simple linear relationship. The transmitter measures the small voltage, often in millivolts, and scales it to engineering units such as m³/h, L/s, or GPM.
In practice, most engineers skip the formula and look at the output. But the formula explains why velocity is the direct measurement, not volume. The flow computer multiplies velocity by the pipe cross-sectional area to calculate volumetric flow. For a DN100 pipe, a velocity of 1 m/s equals about 28.3 m³/h. That is a useful field check.
Why Fluid Conductivity Matters
Electromagnetic flow meters only work with conductive liquids. The fluid must have a minimum conductivity, typically 5 µS/cm for most industrial models. Some models need 20 µS/cm or more. Raw water, treated wastewater, seawater, acids, caustic, beer, milk, and sludge are all suitable. Pure water, demineralized water, diesel, and most oils are not suitable because conductivity is too low.
For oil, diesel, or pure water, use a Coriolis mass flow meter or an oval gear flow meter. We have seen customers in Southeast Asia try to use a magmeter on palm oil and get zero stable reading. That is not a meter fault. It is a wrong technology selection.
Output Options and Field Integration
Standard transmitters from Silver Instruments include 4-20 mA HART, pulse, frequency, and RS485 Modbus. The 4-20 mA signal works well for PLC and DCS loops. HART adds remote configuration and diagnostics. Pulse output suits batching and totalizing. RS485 Modbus is common for remote telemetry in water networks across Latin America and the Middle East.
We have supplied electromagnetic flow meters to a desalination plant in Oman with 4-20 mA HART plus Modbus. The plant measures seawater feed and brine discharge. The meters use rubber liners and titanium electrodes for seawater service. Accuracy stays within 0.5% of reading from 0.5 m/s to 10 m/s.
Installation Rules That Prevent Errors
Straight pipe runs are important. For most installations, allow 5 diameters upstream and 3 diameters downstream. If you have an elbow, valve, or pump close to the meter, increase the straight run. Do not install the meter at the highest point of a pipeline because air pockets can cause instability. Install the meter in a section that remains full of liquid.
Grounding is another common mistake. Conductive process pipes usually provide a ground path. Plastic pipes or internally coated pipes need grounding rings or grounding electrodes. If the meter is not grounded correctly, the reading may wande
Materials and Liners by Application
Select the liner and electrode material based on fluid. Soft rubber liners handle seawater and wastewater. PTFE liners suit acids, alkalis, and chemical injection lines. Polyurethane liners resist abrasive slurries. For electrodes, 316L stainless steel is common for water. Titanium suits seawater and brine. Hastelloy C suits oxidizing acids. Tantalum suits strong acids where ceramic and glass electrodes are not accepted.
A paint manufacturer in Southeast Asia uses a PTFE lined electromagnetic flow meter with Hastelloy C electrodes for latex and solvent based fluids. The meter replaced an older mechanical totalizer and reduced maintenance from once a month to once a year. That is a typical result for chemical batching and transfer lines.
Accuracy and Low Flow Behavior
Most electromagnetic flow meters from Silver Instruments have an accuracy of 0.5% of reading for velocities above 0.5 m/s. Below 0.3 m/s, the signal becomes small and repeatability can drop. The low flow cutoff can be set to force the output to zero below a selected velocity. Some models offer 0.2% of reading for custody transfer, but most process and utility users do not need that level.
Because the meter has no moving parts, calibration drift is small. Annual verification is common. We can supply calibration certificates and field verification tools. In some sites in Vietnam, technicians use a calibrated reference meter to check the installed unit once a year. This takes less than one hour per meter.
Common Applications We See
Water and wastewater plants use electromagnetic flow meters for raw water intake, treated water distribution, sludge transfer, and chemical dosing. Desalination plants in the Middle East use them for seawater feed, permeate, and brine lines. Food and beverage plants use sanitary versions for milk, beer, and juice. Marine systems use them for ballast water and engine cooling lines.
Last year a customer in Chile ordered 12 electromagnetic flow meters for a wastewater treatment plant expansion. The sizes ranged from DN50 to DN300. All units included empty pipe detection and 4-20 mA HART. The plant needed accurate flow data for environmental reporting. The meters were installed in one week and commissioned without issues.
FAQ: Electromagnetic Flow Meter Working Theory and Selection
Can an electromagnetic flow meter measure pure water or oil?
No. The liquid must be conductive. Pure water and oil do not generate a stable signal. Use a Coriolis mass flow meter or an oval gear flow meter for those fluids.
What is the minimum straight pipe run for a magmeter?
Allow 5 pipe diameters upstream and 3 diameters downstream as a baseline. Increase upstream run if there are elbows, valves, or pumps close to the meter.
Does a magmeter work with slurry or solids?
Yes. Use a polyurethane liner for abrasive slurries and keep flow velocity under 3 m/s to reduce liner wear. Some slurries with insulating solids may reduce signal stability.
What output should I choose for a new installation?
4-20 mA HART is the most common for process control. Add RS485 Modbus if you need remote monitoring. Pulse output works well for batching and totalizing.
How do I get a quote for my application?
Send us your pressure in bar, temperature in °C, pipe size in DN, fluid type, conductivity, and flow range. We will recommend a model and send pricing.
