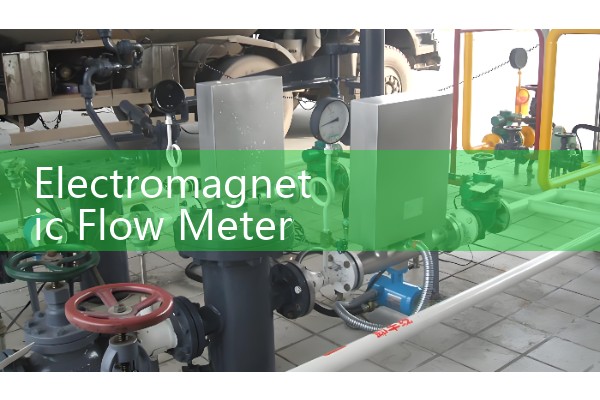

Electromagnetic Flow Meter For Water Treatment Plants: Full Sizing Guide
Quick Answer: For most water treatment plants, an electromagnetic flow meter sized between DN50 and DN300 with a hard rubber or PTFE liner, 316L electrodes, and 4-20 mA HART output will handle raw water, clarified water, and sludge. Start with flow range, pipe size, and conductivity. Silver Instruments supplies these meters from Nanjing with a 3 week lead time on standard sizes.
Start with conductivity and flow range
Electromagnetic flow meters need a minimum fluid conductivity of 5 µS/cm. Drinking water, river water, well water, and wastewater normally measure between 200 µS/cm and 3000 µS/cm. Demineralized water or condensate below 5 µS/cm will not work. Check this number before you shortlist any meter. Many engineers skip this part and then wonder why the signal is unstable.
Pipe size and velocity: the sizing shortcut
Here is the thing. Do not select the meter size only by the pipe diameter. You want a flow velocity between 1 m/s and 3 m/s for normal operation. The maximum velocity can go up to 10 m/s for short periods. The minimum should stay above 0.3 m/s to avoid sludge settlement inside the sensor. The sizing formula is flow in m3/h = velocity in m/s x pipe inside area in m2 x 3600. For example, a DN100 line running at 40 m3/h gives a velocity around 1.42 m/s. That is a good operating point for a raw water intake. If the same flow runs in a DN200 meter, the velocity drops to about 0.35 m/s and low flow accuracy becomes a problem.
Liner and electrode choices by water type
Raw water with silt works well with a hard rubber liner and 316L electrodes. Clarified water and finished water can use the same combination. If you inject sodium hypochlorite or chlorine, select a PTFE liner because it handles chemical attack better. For seawater desalination feed lines, use titanium electrodes. For sludge with sand or grit, a polyurethane liner resists abrasion better than hard rubber. The Silver Instruments SIT-EF series offers all these combinations without a big cost adder.
Output signals and installation rules
A 4-20 mA HART signal covers most plant control systems. Modbus RS485 is useful when you have long cable runs or need multiple data points. Silver Instruments can also add pulse output for batching and GSM or Ethernet for remote monitoring. Most water treatment plants use PN10 or PN16 flanges. PN25 is available for high pressure raw water transfer. Installation is simple if you keep the pipe full at all times. Mount the sensor in the lowest point of a horizontal run. Keep 5 pipe diameters of straight run upstream and 3 diameters downstream. For DN200 that means 1000 mm straight before the meter. Use grounding r
Real sizing examples from water treatment plants
A surface water treatment plant in Vietnam ordered 6 units of DN250 electromagnetic flow meters for raw water intake. Flow range was 250 m3/h to 700 m3/h. We supplied a hard rubber liner, 316L electrodes, and 4-20 mA HART. Another customer in Saudi Arabia needed 12 units of DN80 meters for filter backwash lines. The water contained fine sand, so we used a polyurethane liner. The measured flow range was 40 m3/h to 120 m3/h. Both cases went from quote to delivery in under 4 weeks.
Recommended Silver Instruments models
For DN15 to DN50 chemical dosing lines, use the SIT-EF-015 to SIT-EF-050 with PTFE liner and Hastelloy C electrodes. For polymer dosing where viscosity can reach 100 cP, stay on the lower end of the velocity range. For DN65 to DN300 raw water and clarified water lines, choose the SIT-EF-065 to SIT-EF-300 with hard rubber liner and 316L electrodes. For DN350 to DN1200 large intake pipes, use the SIT-EF-350 to SIT-EF-1200 with rubber or polyurethane liner depending on sand content. Each meter comes with a calibration certificate tied to your flow range.
Frequently Asked Questions
What flow meter is best for raw water intake? An electromagnetic flow meter is the standard choice because it has no moving parts and handles suspended solids well. Size it for 1 to 3 m/s at normal flow.
Can electromagnetic flow meters measure sludge? Yes. Use a polyurethane liner and 316L or Hastelloy electrodes. Keep velocity above 0.3 m/s so solids do not settle in the sensor.
Does an electromagnetic flow meter work on plastic pipes? Yes. Install grounding rings or use a meter with built-in grounding electrodes. This prevents unstable readings.
What conductivity is needed for a magmeter? The fluid should be above 5 µS/cm. Most water treatment fluids are far above this, except pure water and demineralized water.
How long is the delivery time for Silver Instruments water treatment magmeters? Standard DN15 to DN300 meters ship in 2 to 3 weeks from our Nanjing factory. Large sizes DN350 to DN1200 normally ship in 4 to 5 weeks.
Get a sizing quote
If you need an electromagnetic flow meter for water treatment plants, send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. You can reach Silver Automation Instruments at Tel: +86-25-68650347, WhatsApp: +86-25-52155837, or WeChat: +86 15365082610. We will reply within 24 hours with a sizing sheet and price.
