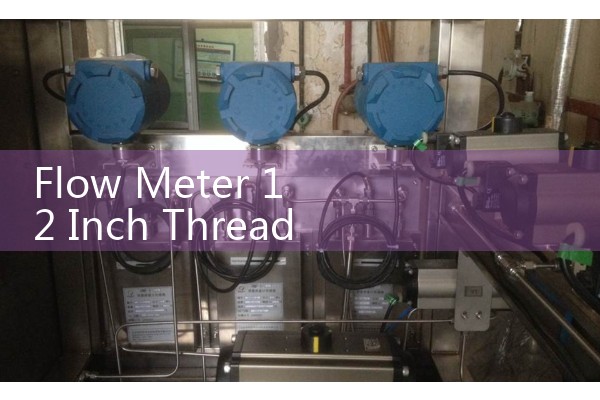

Flow Meter 1 2 Inch Threaded Sensors: Small Bore In-Line Electronic Tracking Equipment
Quick Answer: For a 1/2 inch threaded flow meter on small bore lines, the practical choices are a DN15 Coriolis mass flow meter, a DN15 electromagnetic meter, or a 1/2 inch oval gear meter. Specify thread standard, pipe size in DN, flow range, and output signal. That single step reduces quoting errors and installation rework.
Flow meter 1 2 inch threaded sensors fit lines where a flanged meter is too large or too expensive. Small bore in-line electronic tracking equipment often combines the flow sensor with a totalizer display, a 4-20 mA HART output, and a paperless recorder. Silver Automation Instruments supplies these meters for water, fuel, chemical dosing, steam, gas, and food beverage lines.
The 1/2 inch threaded sensor style fits many existing pipes without flanges. You connect the meter directly into a threaded tee or coupling.
What a 1/2 Inch Threaded Flow Meter Does
A 1/2 inch threaded flow meter measures flow in a small line. The sensor body has male threads, female threads, or both. Common thread standards include NPT, BSPT, BSPP, and G. In Australia and New Zealand, BSP threads appear more often. In Southeast Asia and Latin America, many skid packages use NPT. Send us the thread photo or thread gauge reading before you order.
In practice, threaded meters reduce installation cost on small bore lines. You do not need flanges or pipe welding. The sensor screws directly into the process fitting.
The meter electronics convert flow into a signal. Most units output 4-20 mA HART. You can also specify pulse output, RS485 Modbus, or a local display. A paperless recorder can log the total, temperature, and pressure. This is the electronic tracking part.
Sensor Types for Small Bore In-Line Lines
Coriolis mass flow meters work well on DN15 lines for mass flow, density, and temperature. A typical DN15 Coriolis meter measures 0 to 1000 kg/h with accuracy around plus or minus 0.2 percent. Use this for paint, solvent, syrup, chemical injection, or fuel additives.
Electromagnetic flow meters handle conductive liquids. For water and wastewater, a minimum conductivity of 20 µS/cm is usually enough. A DN15 electromagnetic meter has no moving parts and handles dosing chemicals with a PTFE liner and 316L or Hastelloy C electrodes. This is a common pick for water treatment plants in the Philippines, Vietnam, and Indonesia.
Oval gear flow meters measure diesel, light oil, fuel oil, and other viscous liquids. On a 1/2 inch line, flow ranges can start around 2 L/h and go up to 500 L/h depending on viscosity. If your liquid is above 100 cP, oval gear or Coriolis is more stable than a turbine meter.
Vortex flow meters suit steam, compressed air, and low viscosity liquids. A DN15 vortex meter with temperature and pressure compensation gives mass flow for saturated steam. Thermal mass flow meters handle gas injection, biogas, and compressed air. Silver Automation Instruments can match the sensor type to your fluid and flow range.
Output and Tracking Equipment
Most small bore flow meters need an output that the control system can read. 4-20 mA HART is the default for most plant instruments. Pulse output is better for totalizing. RS485 Modbus is useful when you have many meters on one skid.
For electronic tracking, a Silver Automation Instruments paperless recorder can store flow total, pressure, and temperature with time stamps. A pressure transmitter on the same line sends pressure in bar. This gives a full data record for batch traceability, fuel consumption checks, or wastewater reporting. No special software is needed on some recorder models.
How to Specify DN15 Threaded Flow Meters
Here is the thing. The thread standard matters more than the meter electronics. A BSPP meter will not seal correctly on an NPT fitting. We have seen this on customer sites many times. The leak or thread damage shows up during startup.
Send us the following data. Fluid type, flow range, process pressure in bar, process temperature in degrees Celsius, pipe size in DN, thread standard, and output signal. Also tell us if the area needs ATEX Zone 1 certification. For food beverage lines, specify CIP or SIP temperature and the sanitary thread type.
Installation Notes for 1/2 Inch Threaded Sensors
Most engineers skip this part, but the upstream and downstream straight run still affects accuracy. For
For Coriolis meters, support the meter body and avoid pipe stress. Vibration from nearby pumps can add noise. A 1/2 inch threaded Coriolis meter is compact, but the meter is still heavier than a plastic rotameter. Use a bracket when the line is not rigid.
Recommended Silver Automation Instruments Models for 1/2 Inch Threaded Lines
For mass flow or density tracking on solvents, paints, syrups, or fuels, choose a Silver Automation Instruments SIL-CMF-DN15 Coriolis mass flow meter. The meter provides mass flow in kg/h, density in kg/m3, and PT100 temperature. Output is 4-20 mA HART with optional RS485 Modbus.
For water, wastewater, and chemical dosing, choose a Silver Automation Instruments SIL-EMF-DN15 electromagnetic flow meter. The liner options include PTFE and PFA. Electrode options include 316L, Hastelloy C, titanium, and tantalum. Accuracy is around plus or minus 0.5 percent of reading.
For diesel, fuel oil, and oil additives, choose a Silver Automation Instruments SIL-OGF-12 oval gear flow meter. Threads are available in 1/2 inch NPT or BSP. The meter handles a wide viscosity range and gives pulse output for fuel totalizing.
For steam or compressed air, choose a Silver Automation Instruments SIL-VSF-DN15 vortex flow meter. For biogas or gas injection, a thermal mass flow meter in a 1/2 inch process connection may fit better. Tell us the gas composition and pressure.
Last year a paint manufacturer in Southeast Asia asked us for a small bore meter on a solvent dosing line. The process data was simple. Pressure 6 bar, temperature 40 °C, flow range 20 to 200 kg/h, pipe size DN15. We supplied a SIL-CMF-DN15 Coriolis meter with PT100 temperature. The customer used the density reading to check solvent quality. This meter replaced a manual measuring cup and improved batch consistency.
A water treatment contractor in Mexico asked about a 1/2 inch threaded electromagnetic meter for sodium hypochlorite dosing. The line was DN15 with BSP threads. The liquid conductivity was high, so the SIL-EMF-DN15 worked without a problem. The customer also added a pressure transmitter and a paperless recorder for pump discharge monitoring.
FAQ on Flow Meter 1 2 Inch Threaded Sensors
What is the difference between 1/2 inch NPT and BSP threads?
NPT is common in North America, Southeast Asia, and Latin America. BSP is common in Australia, New Zealand, and many Commonwealth markets. The threads have different angles and sealing methods. Mixing them causes leaks or thread damage. Send a photo of the fitting or use a thread gauge.
Can a 1/2 inch threaded flow meter measure gas and liquid?
One meter cannot measure all fluids well. A Coriolis meter can measure gas and liquid, but the flow range and accuracy differ. Thermal mass flow meters are better for gas. Electromagnetic meters only work on conductive liquids. Specify the fluid and the phase.
What output signal should I specify for small bore tracking?
Use 4-20 mA HART for standard control systems and remote diagnostics. Use pulse output for a local totalizer or PLC counter. Use RS485 Modbus when you connect many meters. Silver Automation Instruments can supply dual output versions.
How do I choose between Coriolis, electromagnetic, and oval gear?
Start with the fluid. For water and conductive chemicals, choose electromagnetic. For mass flow of oil, solvent, paint, or syrup, choose Coriolis. For diesel, fuel oil, or batching oils, oval gear is often lower cost. Tell us the viscosity in cP and the flow range in L/h or kg/h.
Can Silver Automation Instruments supply ATEX certified 1/2 inch threaded flow meters?
Yes. Many models are available with ATEX Zone 1 or Zone 2 certification. Provide the gas group, temperature class, and zone. We will confirm the certification and model before quotation.
Contact Silver Automation Instruments for a specific quote. Tel: +86-25-68650347. Whatsapp: +86-25-52155837. WeChat: +86 15365082610. You can also review threaded flow meters on flow-meter.com.au. Send your fluid type, pressure in bar, temperature in °C, pipe size in DN, thread standard, and flow range. Our engineers will reply with a recommended model and price.
